VGA Lens (Manual Iris Lens)
Features
An extensive line of general-use lenses boasting high-performance lens technology
Featuring vibration-control measures, these lenses are a superior choice for installation in machine vision systems.
Built for a wide variety of uses, including pattern matching, component positioning, missing-part inspection, board mounting, and inspection of pharmaceuticals, produce, and grains.
-
Standard lenses for machine vision use
-
Compatible with VGA-class cameras
-
Production line handling cameras from 1/2" to 1" formats
-
Lock screws as standard vibration-control measures

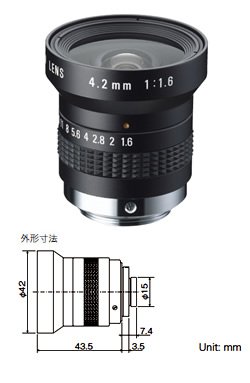

FL-HC0416X-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1/2" format |
| Focal length |
4.2mm |
| Maximum aperture ratio |
1:1.6 |
| Iris range |
1.6～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 64.0° |
|---|
| 1/2" format | 86.4° |
| Minimum object distance |
0.2m |
| Back focal length |
10.42mm |
| Dimensions |
φ42×43.5mm |
| Weight |
120g |
| Remarks |
Iris lock screws, Fixed focus |

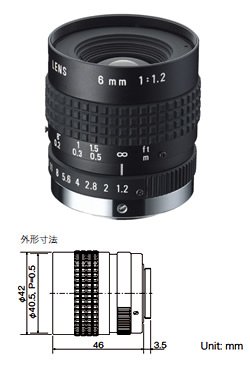

FL-HC0612A-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1/2" format |
| Focal length |
6mm |
| Maximum aperture ratio |
1:1.2 |
| Iris range |
1.2～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 43.4° |
|---|
| 1/2" format | 56.8° |
| Minimum object distance |
0.2m |
| Back focal length |
14.31mm |
| Filter size |
40.5 P=0.5mm |
| Dimensions |
φ42×46mm |
| Weight |
125g |
| Remarks |
Focus & Iris lock screw |

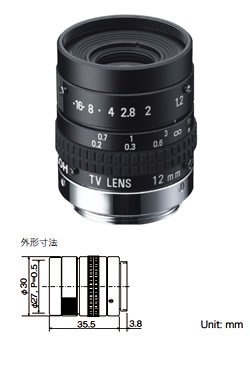

FL-HC1212B-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1/2" format |
| Focal length |
12mm |
| Maximum aperture ratio |
1:1.2 |
| Iris range |
1.2～22 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 22.6° |
|---|
| 1/2" format | 30.2° |
| Minimum object distance |
0.2m |
| Back focal length |
13.87mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ30×35.5mm |
| Weight |
67g |
| Remarks |
Focus & Iris lock screw |

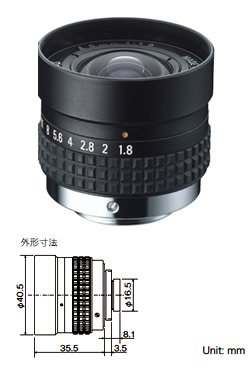

FL-CC0418DX-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
4.8mm |
| Maximum aperture ratio |
1:1.8 |
| Iris range |
1.8～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 54.6° |
|---|
| 1/2" format | 71.6° |
| 1/1.8" format | 79.8° |
| 2/3" format | 95.4° |
| Minimum object distance |
0.3m |
| Back focal length |
9.71mm |
| Dimensions |
φ40.5×35.5mm |
| Weight |
105g |
| Remarks |
Iris lock screws, Fixed focus |

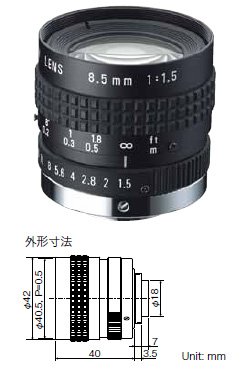

FL-CC0815B-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
8.5mm |
| Maximum aperture ratio |
1:1.5 |
| Iris range |
1.5～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 31.9° |
|---|
| 1/2" format | 42.1° |
| 1/1.8" format | 47.0° |
| 2/3" format | 56.5° |
| Minimum object distance |
0.2m |
| Back focal length |
10.88mm |
| Filter size |
40.5 P=0.5mm |
| Dimensions |
φ42×40mm |
| Weight |
120g |
| Remarks |
Focus & Iris lock screw |

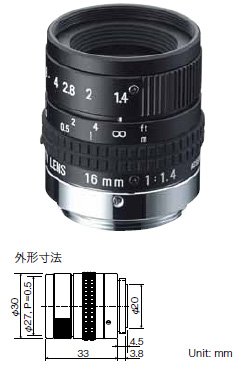

FL-CC1614A-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
16mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～22 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 16.9° |
|---|
| 1/2" format | 22.5° |
| 1/1.8" format | 25.2° |
| 2/3" format | 30.7° |
| Minimum object distance |
0.3m |
| Back focal length |
13.22mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ30×33mm |
| Weight |
58g |
| Remarks |
Focus & Iris lock screw |

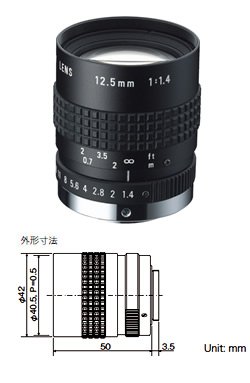

FL-BC1214D-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1" format |
| Focal length |
12.5mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 21.5° |
|---|
| 1/2" format | 28.5° |
| 1/1.8" format | 31.9° |
| 2/3" format | 38.6° |
| 1" format | 53.9° |
| Minimum object distance |
0.3m |
| Back focal length |
14.40mm |
| Filter size |
40.5 P=0.5mm |
| Dimensions |
φ42×50mm |
| Weight |
135g |
| Remarks |
Focus & Iris lock screw |

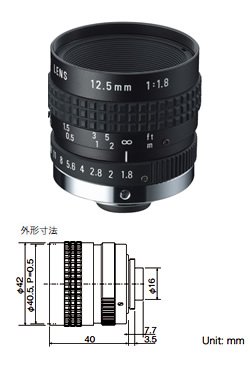

FL-BC1218A-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1" format |
| Focal length |
12.5mm |
| Maximum aperture ratio |
1:1.8 |
| Iris range |
1.8～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 22.0° |
|---|
| 1/2" format | 29.1° |
| 1/1.8" format | 32.6° |
| 2/3" format | 39.5° |
| 1" format | 55.4° |
| Minimum object distance |
0.3m |
| Back focal length |
10.36mm |
| Filter size |
40.5 P=0.5mm |
| Dimensions |
φ42×40mm |
| Weight |
95g |
| Remarks |
Focus & Iris lock screw |

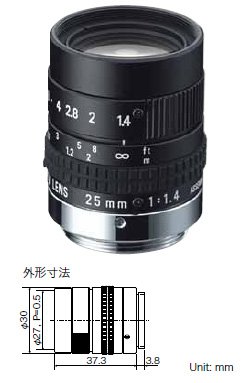

FL-BC2514D-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1" format |
| Focal length |
25mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～22 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 11.0° |
|---|
| 1/2" format | 14.6° |
| 1/1.8" format | 16.4° |
| 2/3" format | 20.1° |
| 1" format | 28.9° |
| Minimum object distance |
0.3m |
| Back focal length |
14.98mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ30×37.3mm |
| Weight |
76g |
| Remarks |
Focus & Iris lock screw |

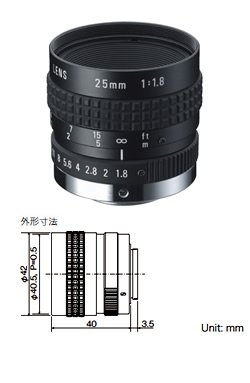

FL-BC2518-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1" format |
| Focal length |
25mm |
| Maximum aperture ratio |
1:1.8 |
| Iris range |
1.8～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 10.9° |
|---|
| 1/2" format | 14.5° |
| 1/1.8" format | 16.3° |
| 2/3" format | 19.9° |
| 1" format | 28.2° |
| Minimum object distance |
0.6m |
| Back focal length |
15.80mm |
| Filter size |
40.5 P=0.5mm |
| Dimensions |
φ42×40mm |
| Weight |
87g |
| Remarks |
Focus & Iris lock screw |

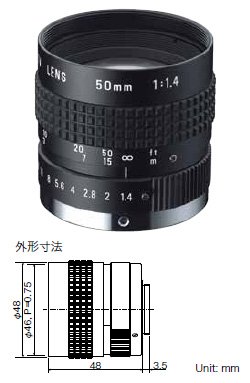

FL-BC5014A-VG
Specifications(PDF)
| Resolution |
over 0.3 Mega-Pixel |
| Format size |
1" format |
| Focal length |
50mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～Close |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 5.5° |
|---|
| 1/2" format | 7.3° |
| 1/1.8" format | 8.2° |
| 2/3" format | 10.0° |
| 1" format | 14.4° |
| Minimum object distance |
1.0m |
| Back focal length |
18.05mm |
| Filter size |
46 P=0.75mm |
| Dimensions |
φ48×48mm |
| Weight |
180g |
| Remarks |
Focus & Iris lock screw |
