2 Mega-Pixel Lens (Manual Iris Lens, compatible with 2 mega-pixel cameras)
Features
2 mega-pixel type lenses for a wide range of applications
Select the optimum lens for your focal length and format size requirements
These manual-iris lenses are your best choice for image processing data capture at 2 mega-pixels. With their compact size and high performance, they deliver great results for high-precision manufacturing inspection (chip mounters, wafers, electronic substrates, etc.).
-
High-performance lenses for close-up imaging with 2 mega-pixel CCD and CMOS sensors
-
Sharp high resolution, high contrast images, that limit resolution loss from the center to periphery
-
With compact size, light weight, and durability, these are excellent lenses for FA and machine vision use
-
They greatly reduce distortion that causes problems in image measurement and recognition
-
Built to handle environments with vibration, etc. Easy to use, reliable focus and iris locking mechanisms as standard features

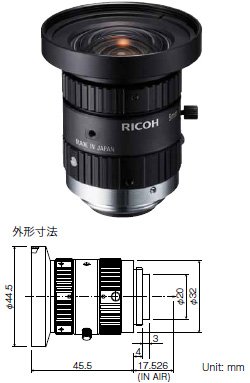

FL-HC0514-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
1/2" format |
| Focal length |
5mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 51.4° |
|---|
| 1/2" format | 65.5° |
| Minimum object distance |
0.1m |
| Back focal length |
10.8mm |
| Filter size |
43.0 P=0.75mm |
| Dimensions |
φ44.5×45.5mm |
| Weight |
102g |
| Remarks |
Focus & Iris lock screw |

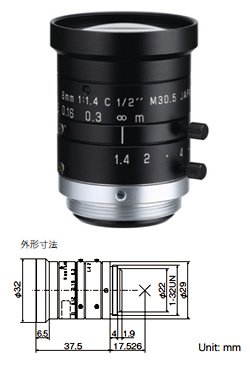

FL-HC0614-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
1/2" format |
| Focal length |
6mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 44.5° |
|---|
| 1/2" format | 57.4° |
| Minimum object distance |
0.1m |
| Back focal length |
12.32ｍｍ |
| Dimensions |
φ32×37.5ｍｍ |
| Weight |
58g |
| Remarks |
Focus & Iris lock screw |

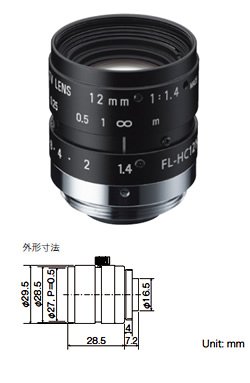

FL-HC1214-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
1/2" format |
| Focal length |
12mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 21.9° |
|---|
| 1/2" format | 28.9° |
| Minimum object distance |
0.25m |
| Back focal length |
11.50mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ29.5×28.5mm |
| Weight |
55g |
| Remarks |
Focus & Iris lock screw |

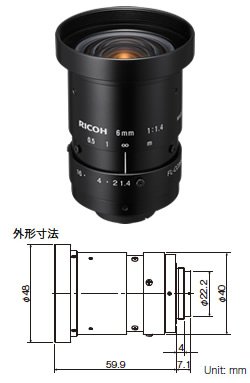

FL-CC0614A-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
6mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 42.6° |
|---|
| 1/2" format | 55.1° |
| 1/1.8" format | 60.8° |
| 2/3" format | 71.2° |
| Minimum object distance |
0.1m |
| Back focal length |
10.9mm |
| Dimensions |
φ48×59.9mm |
| Weight |
149g |
| Remarks |
Focus & Iris lock screw |

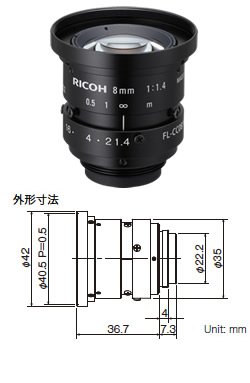

FL-CC0814A-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
8mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 32.6° |
|---|
| 1/2" format | 42.7° |
| 1/1.8" format | 47.4° |
| 2/3" format | 56.3° |
| Minimum object distance |
0.1m |
| Back focal length |
11.1mm |
| Filter size |
40.5 P=0.5mm |
| Dimensions |
φ42×36.7mm |
| Weight |
76g |
| Remarks |
Focus & Iris lock screw |
FL-CC0814-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
8mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 32.4° |
|---|
| 1/2" format | 42.5° |
| 1/1.8" format | 47.3° |
| 2/3" format | 56.3° |
| Minimum object distance |
0.1m |
| Back focal length |
13.1mm |
| Filter size |
30.5 P=0.5mm |
| Dimensions |
φ33.5×28.2mm |
| Weight |
63g |
| Remarks |
Focus & Iris lock screw |

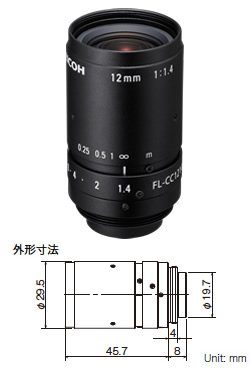

FL-CC1214A-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
12mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 22.1° |
|---|
| 1/2" format | 29.2° |
| 1/1.8" format | 32.7° |
| 2/3" format | 39.4° |
| Minimum object distance |
0.1m |
| Back focal length |
10.7mm |
| Dimensions |
φ29.5×45.7mm |
| Weight |
72g |
| Remarks |
Focus & Iris lock screw |
FL-CC1214-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
12mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 22.7° |
|---|
| 1/2" format | 30.0° |
| 1/1.8" format | 33.5° |
| 2/3" format | 40.4° |
| Minimum object distance |
0.15m |
| Back focal length |
13.1mm |
| Filter size |
30.5 P=0.5mm |
| Dimensions |
φ33.5×28.2mm |
| Weight |
62g |
| Remarks |
Focus & Iris lock screw |

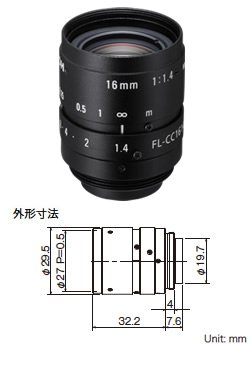

FL-CC1614A-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
16mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 17.1° |
|---|
| 1/2" format | 22.6° |
| 1/1.8" format | 25.3° |
| 2/3" format | 30.7° |
| Minimum object distance |
0.1m |
| Back focal length |
10.7mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ29.5×32.2mm |
| Weight |
54g |
| Remarks |
Focus & Iris lock screw |

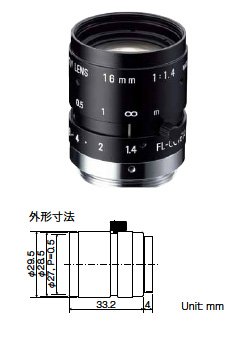

FL-CC1614-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
16mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 17.1° |
|---|
| 1/2" format | 22.7° |
| 1/1.8" format | 25.5° |
| 2/3" format | 31.0° |
| Minimum object distance |
0.25m |
| Back focal length |
14.61mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ29.5×33.2mm |
| Weight |
63g |
| Remarks |
Focus & Iris lock screw |

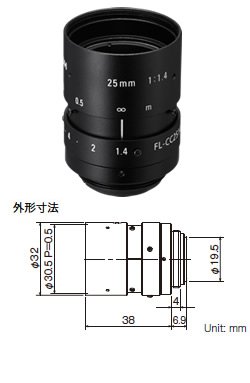

FL-CC2514A-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
25mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 10.7° |
|---|
| 1/2" format | 14.2° |
| 1/1.8" format | 16.0° |
| 2/3" format | 19.5° |
| Minimum object distance |
0.1m |
| Back focal length |
12.1mm |
| Filter size |
30.5 P=0.5mm |
| Dimensions |
φ32.0×38.0mm |
| Weight |
63g |
| Remarks |
Focus & Iris lock screw |

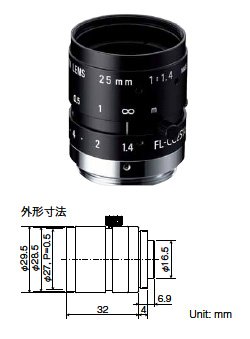

FL-CC2514-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
25mm |
| Maximum aperture ratio |
1:1.4 |
| Iris range |
1.4～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 11.0° |
|---|
| 1/2" format | 14.6° |
| 1/1.8" format | 16.4° |
| 2/3" format | 20.0° |
| Minimum object distance |
0.25m |
| Back focal length |
11.50mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ29.5×32mm |
| Weight |
55g |
| Remarks |
Focus & Iris lock screw |

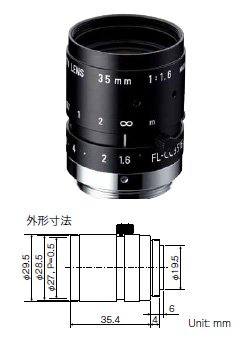

FL-CC3516-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
35mm |
| Maximum aperture ratio |
1:1.6 |
| Iris range |
1.6～16 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 8.1° |
|---|
| 1/2" format | 10.8° |
| 1/1.8" format | 12.1° |
| 2/3" format | 14.8° |
| Minimum object distance |
0.4m |
| Back focal length |
11.85mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ29.5×35.4mm |
| Weight |
64g |
| Remarks |
Focus & Iris lock screw |

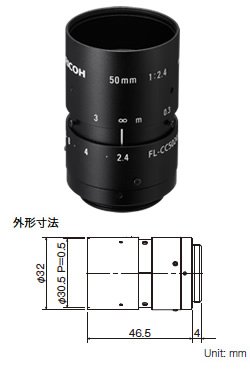

FL-CC5024A-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
50mm |
| Maximum aperture ratio |
1:2.4 |
| Iris range |
2.4〜22 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 5.6° |
|---|
| 1/2" format | 7.5° |
| 1/1.8" format | 8.4° |
| 2/3" format | 10.3° |
| Minimum object distance |
0.3m |
| Back focal length |
22.3mm |
| Filter size |
30.5 P=0.5mm |
| Dimensions |
φ32.0×46.5mm |
| Weight |
66g |
| Remarks |
Focus & Iris lock screw |
FL-CC5028-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
50 mm |
| Maximum aperture ratio |
1:2.8 |
| Iris range |
2.8〜22 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 5.5° |
|---|
| 1/2" format | 7.3° |
| 1/1.8" format | 8.2° |
| 2/3" format | 10.0° |
| Minimum object distance |
0.9m |
| Back focal length |
21.03mm |
| Filter size |
27 P=0.5mm |
| Dimensions |
φ29.5×34mm |
| Weight |
55g |
| Remarks |
Focus & Iris lock screw |

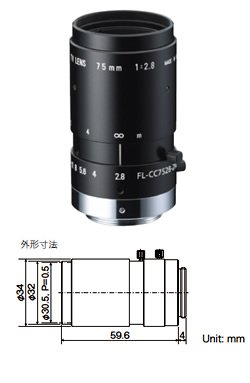

FL-CC7528-2M
Specifications(PDF)
| Resolution |
over 2 Mega-Pixel |
| Format size |
2/3" format |
| Focal length |
75 mm |
| Maximum aperture ratio |
1:2.8 |
| Iris range |
2.8〜32 |
| Mount |
C |
| Horizontal angle of view |
1/3" format | 3.8° |
|---|
| 1/2" format | 5.0° |
| 1/1.8" format | 5.7° |
| 2/3" format | 6.9° |
| Minimum object distance |
0.7m |
| Back focal length |
30.94mm |
| Filter size |
30.5 P=0.5mm |
| Dimensions |
φ34×59.6mm |
| Weight |
125g |
| Remarks |
Focus & Iris lock screw |
