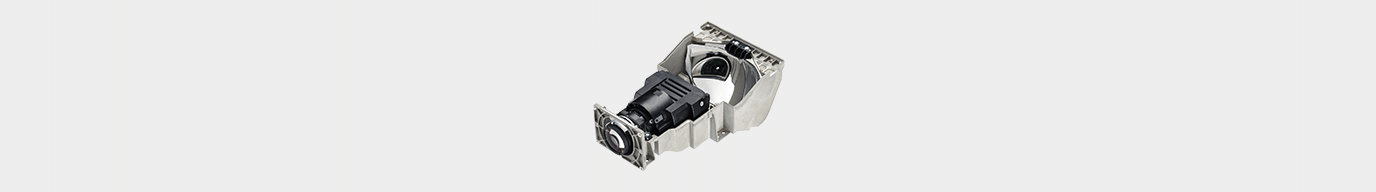

Ultra Short Throw Lens
Feature
-
Supports resolutions from XGA to WUXGA (panel sizes 0.65 - 0.67 inches)
-
Supports resolutions from XGA to WUXGA (panel sizes 0.6 inches)
-
Uses aspherical plastic lens to provide high resolution with low distortion all the way to the periphery
-
Uses aspherical plastic mirror to provide ultra short focus projection
-
0.24 throw ratio
-
Lens mount supports various customization
-
Telecentric lens
-
FnoF2.4
-
2,000lm - 5,000lm brightness preset
-
Chromatic aberration design for single plate/triple plate projectors
《Principal Use》
Product Line-up
PJ-LENS:FRONT:HB:0.65P1080:UST （High Resolution）
Major Specifications
| Ultra Short Throw Lens | ||
|---|---|---|
| PJ-LENS:FRONT:HB:0.65P1080:UST | ||
| DMD LCD | ||
| Panel | 0.67WU | |
| 0.65 1080p | ||
| Image Circle | φ25.0 | |
| Panel Shift | 138% | |
| F No. | W | 2.4 |
| T | - | |
| Zoom Ratio | - | |
| BF（in air） | 26 | |
| Insert thickness（BK 7） | 28.1 | |
| 80 inch/distance | 0.44m | |
| TR（main panel） | 0.24 | |
| Lens Length | 251mm | |
| Lens Size | - | |
