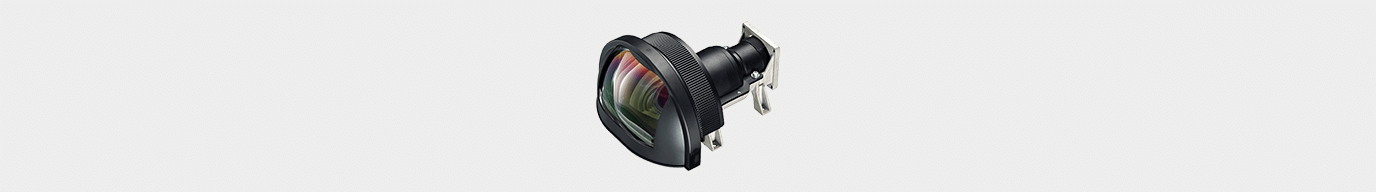

Short Throw Lens

Short Throw Lens

Short Throw Lens

Features

  • Supports resolutions from XGA to WUXGA (panel sizes 0.59 - 0.75 inches)

  • Uses RICOH's aspherical plastic lens to provide high resolution with low distortion all the way to the periphery

  • 0.46 - 0.6 throw ratio

  • Lens mount supports various customization

  • Telecentric lens

  • FnoF1.6 - F1.8

  • 2,000lm - 5,000lm brightness preset

《Principal Use》

比較的小さな会議室
Small meeting rooms
設置場所が限られた会議室など
Meeting rooms with limited installation space

Product Line-up

PJ-LENS:FRONT:0.63X:ST （スタンダード）

PJ-LENS:FRONT:0.63X:ST （Standard）

PJ-LENS:FRONT:F1.8:0.63

PJ-LENS:FRONT:F1.8:0.63":ST （High Luminance）

PJ-LENS:STD-ST （小型）

PJ-LENS:STD-ST （Compact）

Major Specifications

  Short Throw Lens
PJ-LENS:FRONT:0.63X:ST PJ-LENS:FRONT:F1.8:0.63":ST PJ-LENS:STD-ST
  LCD LCD LCD
Panel 0.63X 0.63X 0.59W
0.59W 0.59W -
Image Circle φ24.8 φ24.0 φ22.0
Panel Shift 120% 110% 120%
F No. W 1.8 1.8 1.6
T - - -
Zoom Ratio - - -
BF（in air） 27.2 26.9 25.7
Insert thickness（BK 7） 25.8 25.8 26.89
80 inch/distance 0.98m 0.75m 0.83m
TR（main panel） 0.6 0.46 0.48
Lens Length 160mm 170mm 168mm
Lens Size 133mm 133mm 125mm
